AUTOMOTIVE AFTERMARKET

BEARINGS

Suitable for Automobile chassis system、automobile gearbox、automobile engine system JB provides ball、tapered bearings and timing devices , which are also applicable to new energy vehicles. Aplllication field : it is mainly exported to the european and American markets, and mainly substitutes for imported bearing for domestic market . JB bearing products are generally designat for use by various automobile hosts, and the IPTV value counted by customers is at the top-class level.it fully participates in the synchronous development of the user and is widely adopted by world-class automibile users.

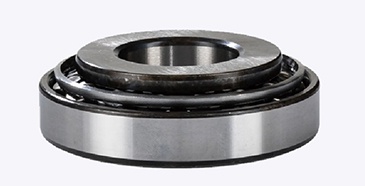

TAPERED ROLLER BEARINGS

JB Bearings offers an assortment of tapered roller bearings designed to meet many industrial needs. These bearings can handle high radial and axial loads in a single direction. Our tapered roller bearings are suitable for use in gearboxes, pumps & compressors, construction equipment, steel mills and automotive applications with options including single-row, double-row and four-row configurations.

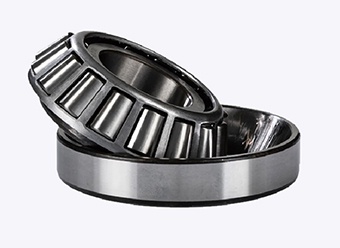

ANATOMY & THE APEX PRINCIPLE

Unlike standard ball bearings, which have a single point of contact, tapered roller bearings distribute loads along a continuous line, drastically increasing their weight-carrying capacity. The Cup and Cone: The assembly consists of two primary separable components. The inner race, cage, and rollers form the cone, while the separate outer race is called the cup. The Apex Point: Geometrically, the angled project lines of the rollers and raceways all converge at a single, precise apex point on the bearing centerline. This mathematical alignment achieves a true rolling motion, minimizing operating friction, heat, and wear.

WHY THEY ARE MOUNTED IN PAIRS

A single-row tapered roller bearing can only accommodate axial (thrust) forces pushing in one. direction. Because radial forces on the angled rollers inherently induce a secondary axial thrust force, these bearings must be . installed in opposed pairs (either back-to-back or face-to-face configurations). Mechanics apply a specific amount of mechanical . preload during installation to properly lock the assembly and ensure rigid shaft guidance.

ADVANTAGES AND LIMITATIONS

High Load Capacity: Unmatched ability to support severe radial and thrust forces simultaneously. Separable Components: Because the cup and cone separate, installation, inspection, and maintenance are easier to handle. Stiffness: Offers very precise, rigid shaft guidance when preloaded correctly.

CONS

Speed Limits: Angled surface contact generates more heat than ball bearings, capping their maximum RPM capabilities. Misalignment Sensitivity: They do not tolerate shaft flexing or structural misalignment well, which can cause edge stresses and premature failure. Open Design: Standard configurations typically cannot support integrated seals or shields, requiring external housing seals.

AIR CONDITIONER COMPRESSOR BEARING WHOLESALE

JB Bearings offers an assortment of tapered roller bearings designed to meet many industrial needs. These bearings can handle high radial and axial loads in a single direction. Our tapered roller bearings are suitable for use in gearboxes, pumps & compressors, construction equipment, steel mills and automotive applications with options including single-row, double-row and four-row configurations.

Air conditioner compressor bearings are one of the key components in air conditioner refrigeration systems. They are located inside the compressor and bear the important tasks of supporting rotating parts, reducing friction, and transmitting torque. They are usually composed of inner and outer rings, rolling elements, and cages. Our air conditioner compressor bearings can withstand large radial and axial loads and adapt to the working environment of high-speed rotation and a high compression ratio of the compressor. Through strict rolling element sorting and precision control, it can ensure that the bearings work stably at high speeds, reduce vibration and noise, and thus extend the service life. High-precision manufacturing requirements enable it to maintain stable performance at high speeds and provide a reliable operating environment. The optimized geometric structure and rolling element design reduce stress concentration, reduce the noise level during operation, and provide a quieter operating environment. Due to the high humidity and chemicals that may exist in the air conditioning system, our air conditioner compressor bearings have good corrosion resistance to ensure long-term stable operation.

COMPRESSOR BEARINGS ARE CATEGORIZED BASED

ON DESIGN AND APPLICATION REQUIREMENTS.

COMMON TYPES INCLUDE:

Ball Bearings: Utilize spherical rolling elements to handle moderate radial and axial loads. They are suitable for high-speed applications due to low friction coefficients. Roller Bearings: Employ cylindrical or tapered rollers for higher load-carrying capacity. Tapered roller bearings are often used in compressors with combined radial and axial loads. Sleeve Bearings: Also known as plain bearings, these consist of a sliding surface and are used in low-speed applications. They lubrication for optimal performance. Magnetic Bearings: Use electromagnetic forces to levitate the shaft, eliminating physical contact. These are found in advanced, oil-free.

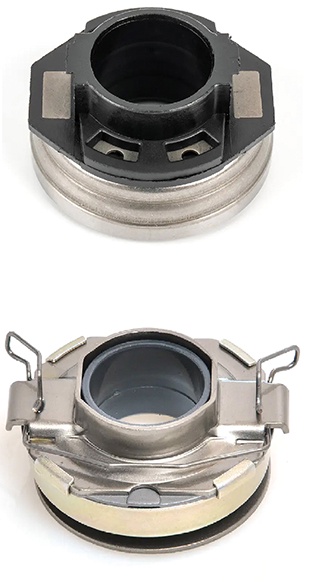

CLUTCH RELEASE BEARING

1-AUTOMOTIVE-AFTERMARKET-BEARINGS_34

Clutch release bearing is designed and manufactured specifically for specific car models.



As a critical component in the manual transmission system, this bearing's primary function is to accurately and smoothly apply force or displacement transmitted from the clutch master cylinder or cable to the release finger (or release lever) of the clutch pressure plate's diaphragm spring when the driver operates the clutch pedal. It is designed to withstand the axial loads during clutch operation. Its internal precision needle or ball bearing mechanism enables low-friction rotation, ensuring that the clutch plate effectively and quickly disengages and engages the flywheel, ensuring smooth and reliable interruption and resumption of power transmission.



This clutch release bearing is designed and manufactured in strict accordance with car original equipment specifications to meet the demanding operating conditions of the corresponding vehicle's powertrain system. Its compact structure offers excellent wear and high-temperature resistance to withstand the heat and friction generated during clutch operation.



Designed with high-quality materials and precision manufacturing techniques, these bearings provide stable performance and a long service life.



They are crucial components for ensuring the vehicle's clutch system's responsiveness, smooth shifting, and precise powertrain control. Accurate installation and reliable operation of these bearings are crucial to maintaining the overall performance of the vehicle's transmission system.
