PRODUCT
| 带座轴承代号 | Shaft Dia | Dimensions(mm) | Bolt Used | ||||||||||
| d | |||||||||||||
| (mm) | H | L | J | A2 | N | H1 | H2 | 8 | s | C1 | Zs | ||
| KP08 | 8 | 16 | 55 | 42 | 12 | 4.5 | 5 | 30 | 12 | 3 | 5 | 30 | M5 |
| KP000 | 10 | 18 | 67 | 53 | 16 | 7 | 6 | 35 | 14 | 4 | 5.56 | 33 | M6 |
| KP001 | 12 | 19 | 71 | 56 | 16 | 7 | 6 | 38 | 14.5 | 4 | 5 | 33 | M6 |
| KP002 | 15 | 22 | 80 | 63 | 16 | 7 | 7 | 43 | 16.5 | 4.5 | 4 | 34 | M6 |
| KP003 | 17 | 24 | 85 | 67 | 18 | 7 | 7 | 47 | 17.5 | 5 | 5.5 | 38 | M6 |
| KP004 | 20 | 28 | 100 | 80 | 20 | 10 | 9 | 55 | 21 | 6 | 7 | 46 | M8 |
| KP005 | 25 | 32 | 112 | 90 | 20 | 10 | 10 | 62 | 22.5 | 6 | 6 | 47 | M8 |
| KP006 | 30 | 36 | 132 | 106 | 26 | 13 | 11 | 70 | 24.5 | 6.5 | 6 | 50 | M10 |
| KP007 | 35 | 42 | 150 | 118 | 33 | 13 | 14 | 76 | 33 | 8 | 8 | 55 | M12 |

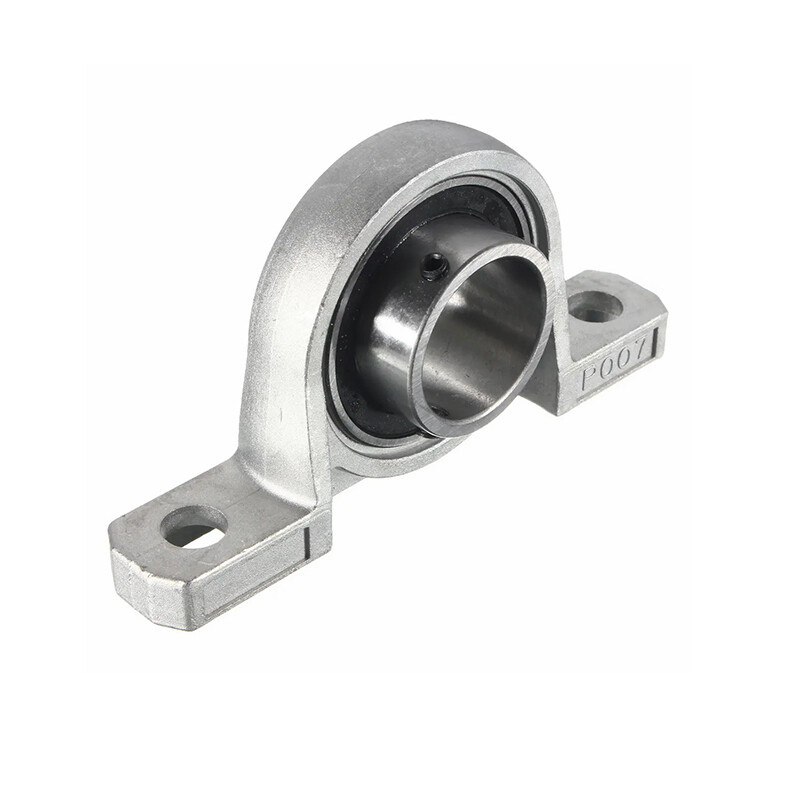

3D View
Technical Specification
Tehnical Drawing
Sealing
Sealing Drawing
LEAVE US A MESSAGE
If you have any questions, please fill out the form to contact us, and our customer service will reply to you within 24 hours!
|
Suffixes |
|
|
Sealing Types |
|
|
2Z |
Metal shield (non-contact sealing) on both sides |
|
2RS |
One lip rubber metal seal on both sides |
|
2RS1 |
One lip rubber metal seal on both sides |
|
2S |
One lip rubber metal seal (on both sides) |
|
2F |
One lip rubber metal seal + flinger, on both sides |
|
2T |
Three lip seal on both sides |
|
T |
Outer ring with stopping pin |
|
2TC |
Three lip seal on both sides+ metal cover |
|
2TB |
Three lip seal + metal shield, on both sides |
|
TDT |
Three lip seal at one side, double three lip seal on the other side |
|
FS |
Sealing with one lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBS |
Sealing with three lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBT |
Sealing with three lip seal and a protective metal ring at one side and three lip seal on the other side |
|
2P |
Five lip seal on both sides |
|
2PB |
Five lip seal and metal shield, on both sides |
|
2PC |
Five lip seal on both sides + metal cover |
|
P |
Triple lip seal on one side, cylindrical surface of outer ring |
|
PP |
Triple lip seal, cylindrical surface of outer ring |
|
PB |
Triple lip seal on one side, spherical surface of outer ring |
|
PPB |
Triple lip seal, spherical surface of outer ring |
|
RR |
One lip seal cylindrical surface of outer ring |
|
RRB |
One lip seal spherical surface of outer ring |
|
KPP |
Triple lip seal cylindrical surface of outer ring |
|
KPPB |
Triple lip seal spherical surface of outer ring |
|
KR |
One lip seal on one side, cylindrical surface of outer ring |
|
KRR |
One lip seal, cylindrical surface of outer ring |
|
KRB |
One lip seal on one side, spherical surface |
|
KRRB |
One lip seal, spherical surface |
|
KRP |
One lip seal on one side and on the other side is triple lip seal |
