| Bearing No. | Shaft diameter(d) | Dimension (mm) | Bolt specification | Bearing No. | Housing No. | weight(kg) | |||||||||
| (in.) | (mm) | H | J | L | A | N | H₁ | Ho | S | B | |||||
| SBPP201 201-8 202 202-10 203 203-11 | 1/2 5/8 11/16 | 12 15 17 | 22.2 | 68 | 86 | 25 | 9.5 | 3 | 43.5 | 6 | 22 | M8 | SB201 201-8 202 202-10 203 203-11 | PP203 | 0.17 0.16 0.15 |
| SBPP204-12 204 | 3/4 | 20 | 25.4 | 76 | 98 | 32 | 9.5 | 3 | 50.2 | 7 | 25 | M8 | SB204-12 204 | PP204 | 0.21 |
| SBPP205-14 205-15 205 205-16 | 7/8 15/16 1 | 25 | 28.6 | 86 | 108 | 32 | 11.5 | 4 | 56.4 | 7.5 | 27 | M10 | SB205-14 205-15 205 205-16 | PP205 | 0.30 |
| SBPP206-18 206 206-19 206-20 | 1-1/8 1-3/16 1-1/4 | 30 | 33.3 | 95 | 117 | 38 | 11.5 | 4 | 66.1 | 8 | 30 | M10 | SB206-18 206 206-19 206-20 | PP206 | 0.42 |
| SBPP207-20 207-21 207-22 207 207-23 | 1-1/4 1-5/16 1-3/8 1-7/16 | 35 | 39.7 | 106 | 129 | 42 | 11.5 | 4 | 77.7 | 8.5 | 32 | M10 | SB207-20 207-21 207-22 207 207-23 | PP207 | 0.59 |

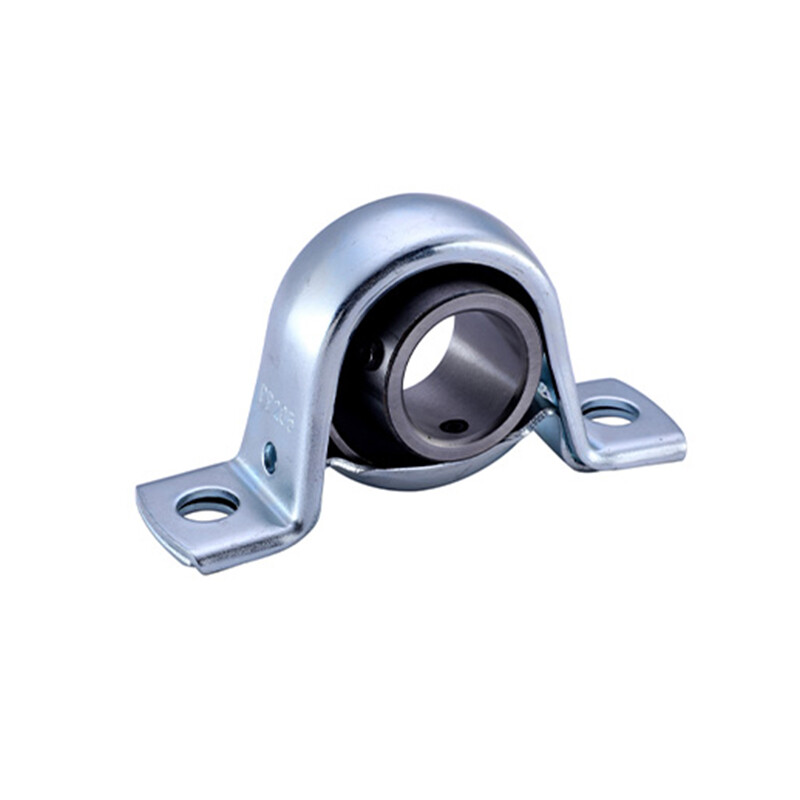

3D View
Technical Specification
Tehnical Drawing
Sealing
Sealing Drawing
LEAVE US A MESSAGE
If you have any questions, please fill out the form to contact us, and our customer service will reply to you within 24 hours!
|
Suffixes |
|
|
Sealing Types |
|
|
2Z |
Metal shield (non-contact sealing) on both sides |
|
2RS |
One lip rubber metal seal on both sides |
|
2RS1 |
One lip rubber metal seal on both sides |
|
2S |
One lip rubber metal seal (on both sides) |
|
2F |
One lip rubber metal seal + flinger, on both sides |
|
2T |
Three lip seal on both sides |
|
T |
Outer ring with stopping pin |
|
2TC |
Three lip seal on both sides+ metal cover |
|
2TB |
Three lip seal + metal shield, on both sides |
|
TDT |
Three lip seal at one side, double three lip seal on the other side |
|
FS |
Sealing with one lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBS |
Sealing with three lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBT |
Sealing with three lip seal and a protective metal ring at one side and three lip seal on the other side |
|
2P |
Five lip seal on both sides |
|
2PB |
Five lip seal and metal shield, on both sides |
|
2PC |
Five lip seal on both sides + metal cover |
|
P |
Triple lip seal on one side, cylindrical surface of outer ring |
|
PP |
Triple lip seal, cylindrical surface of outer ring |
|
PB |
Triple lip seal on one side, spherical surface of outer ring |
|
PPB |
Triple lip seal, spherical surface of outer ring |
|
RR |
One lip seal cylindrical surface of outer ring |
|
RRB |
One lip seal spherical surface of outer ring |
|
KPP |
Triple lip seal cylindrical surface of outer ring |
|
KPPB |
Triple lip seal spherical surface of outer ring |
|
KR |
One lip seal on one side, cylindrical surface of outer ring |
|
KRR |
One lip seal, cylindrical surface of outer ring |
|
KRB |
One lip seal on one side, spherical surface |
|
KRRB |
One lip seal, spherical surface |
|
KRP |
One lip seal on one side and on the other side is triple lip seal |
