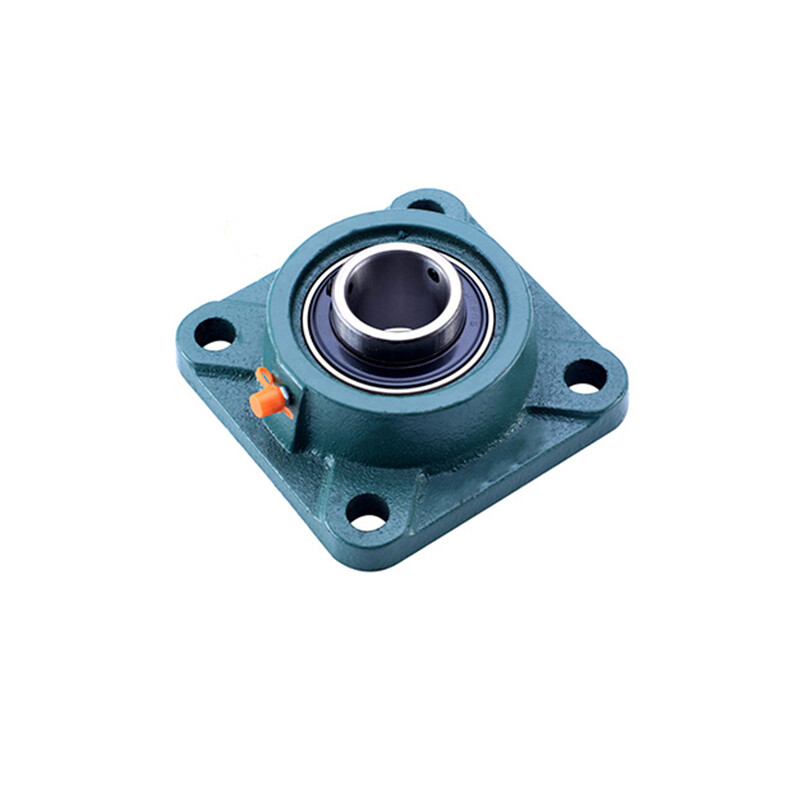

UCFU200 Series

Bearing No.	Shaft diameter (d)		Dimension ( mm)									Bolt specification	Bearing No.	Housing No.	Weight (Kg)
Bearing No.	(in.)	(mm)	L	J	A2	A₁	A	E	N	s	A4	Bolt specification	Bearing No.	Housing No.	Weight (Kg)
UCFU201 201-8 202 202-10 203 203-11 204-12 204	1/2 5/8 11/16 3/4	12 15 17 20	86	63.5	19	15	29.5	37.3	12	12.7	41.5	M10	UC201 201-8 202 202-10 203 203-11 204-12 204	FU204	0.67 0.65 0.64 0.62
UCFU205-14 205-15 205 205-16	7/8 15/16 1	25	93	70	19	15	30	38.7	12	14.3	43	M10	UC205-14 205-15 205 205-16	FU205	0.78
UCFU206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	106	82.5	20	16	32.5	42.2	12	15.9	46	M10	UC206-18 206 206-19 206-20	FU206	1.01
UCFU207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	116	92	21	17	35	46.2	14	17.5	50.5	M12	UC207-20 207-21 207-22 207 207-23	FU207	1.37
UCFU208-24 208-25 208	1-1/2 1-9/16	40	129	101.5	24	17	39	54.2	16	19	58	M14	UC208-24 208-25 208	FU208	1.81
UCFU209-26 209-27 209-28 209	1-5/8 1-1/16 1-3/4	45	135	105	24	18	40	54.2	16	19	59	M14	UC209-26 209-27 209-28 209	FU209	2.09
UCFU210-30 210-31 210	1-7/8 1-15/16	50	143	111	28	20	45	60.6	19	19	66	M16	UC210-30 210-31 210	FU210	2.43
UCFU211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	162	130	31	21	49	64.4	19	22.2	70	M16	UC211-32 211-34 211 211-35	FU211	3.46
UCFU212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	175	143	34	22	53.5	73.7	19	25.4	79.5	M16	UC212-36 212 212-38 212-39	FU212	4.09
UCFU213-40 213	2-1/2	65	184	149	38	22	58	77.7	19	25.4	87	M16	UC213-40 213	FU213	4.88
UCFU214-44 214	2-3/4	70	188	152	38	23	60	82.4	19	30.2	--	M16	UC214-44 214	FU214	5.49
UCFU215-47 215 215-48	2-15/16 3	75	200	159	41	24	62	85.5	19	33.3	--	M16	UC215-47 215 215-48	FU215	6.15
UCFU216		80	207	165	42	25	63	91.3	23	33.3	--	M20	UC216	FU216	7.03
