Insert Bearing With Housing

PRODUCT

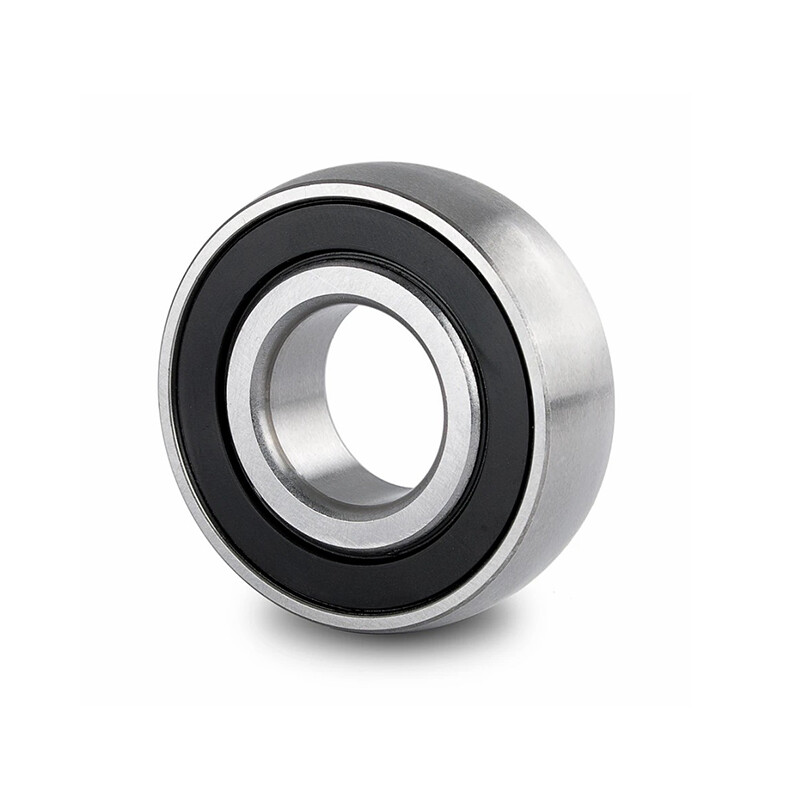

CS200 Series

Bearing No.	Shaft diameter （d/mm）	Dimension ( mm/min )		Load (Kgf)		Weight (KG)
Bearing No.	Shaft diameter （d/mm）	D	B	Cr	Cor	Weight (KG)
CS200	10	30 1,1811	9 0,3543	5100	2230	0,031
CS201	12	32 1,2598	10 0,3937	6800	3050	0,033
CS202	15	35,0 1,3780	11 0,4331	7600	3490	0,043
CS203	17	40 1,5748	12 0,4724	9600	4600	0,061
CS204	20	47 1,8504	14 0,5512	12800	6600	0,098
CS205	25	52 2,0472	15 0,5906	1400	7850	0,122
CS206	30	62 2,4409	16 0,6299	19400	11250	0,195
CS207	35	72 2,8346	17 0,6693	25700	15300	0,280
CS208	40	80 3,1496	18 0,7087	29500	18100	0,358
CS209	45	85 3,3465	19 0,7480	32700	20900	0,405
CS210	50	90 3,5433	20 0,7874	3500	23200	0,449
CS211	55	100 3,9370	21 0,8268	43300	29200	0,589
CS212	60	110 4,3307	22 0,8661	47700	32800	0,774

3D View

Technical Specification

Tehnical Drawing

Sealing

Sealing Drawing
