Technical Specifications
| Bearing No. | d（mm） | D（mm） | B（mm） (INNER WIDTH) | G.W（kg） |
| 5203KYY2 | 16.256 | 40.000 | 44.120 | 0.233 |
| 838607A | 16.000 | 45.000 | 18.640 | |
| AA205DD | 16.130 | 53.090 | 19.400 | 0.207 |
| 204KRR2 | 17.462 | 47.000 | 21.000 | |
| 5206KPP3 | 30.150 | 62.000 | 50.000 | |
| 204RY2 | 16.027 | 45.225 | 18.669 | 0.118 |

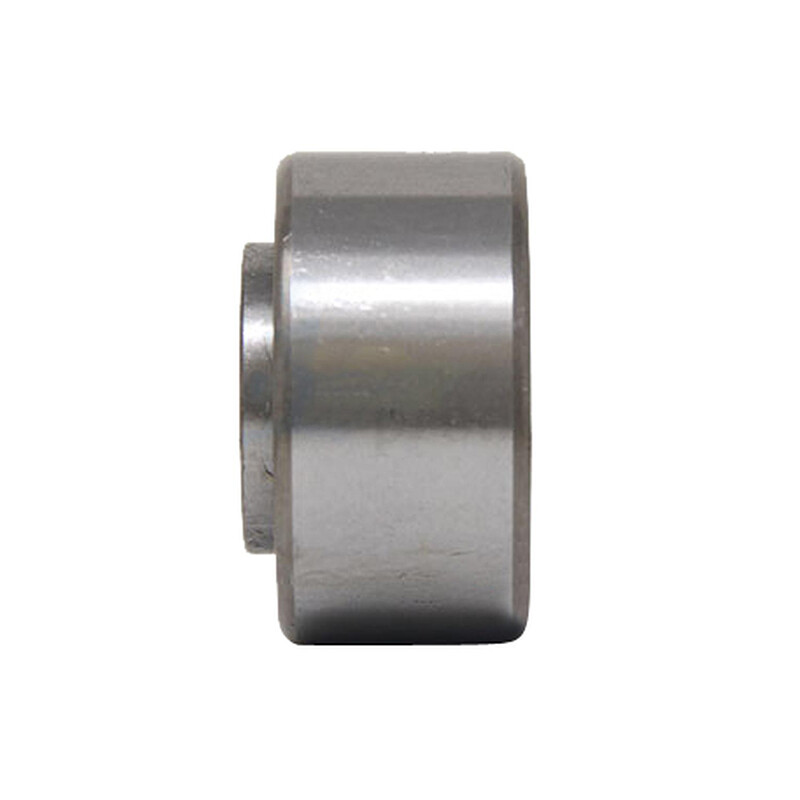

| AA59196 | 16.027 | 45.225 | 26.000 | |
| 5204KPP55 | 16.250 | 47.000 | 44.120 | 0.430 |
| 205KRR2 | 22.225 | 52.000 | 25.400 | |
| 205KPPB2 | 22.225 | 52.000 | 25.400 | 0.200 |
| 204PY3 | 16.150 | 45.225 | 18.660 | |
| 203KRR2 | 16.256 | 40.000 | 18.288 | 0.073 |
| 203KRR3 | 15.951 | 50.800 | 15.000 | |
| 203KRR6 | 16.256 | 47.000 | 18.288 | 0.130 |
LEAVE US A MESSAGE
If you have any questions, please fill out the form to contact us, and our customer service will reply to you within 24 hours!
|
Suffixes |
|
|
Sealing Types |
|
|
2Z |
Metal shield (non-contact sealing) on both sides |
|
2RS |
One lip rubber metal seal on both sides |
|
2RS1 |
One lip rubber metal seal on both sides |
|
2S |
One lip rubber metal seal (on both sides) |
|
2F |
One lip rubber metal seal + flinger, on both sides |
|
2T |
Three lip seal on both sides |
|
T |
Outer ring with stopping pin |
|
2TC |
Three lip seal on both sides+ metal cover |
|
2TB |
Three lip seal + metal shield, on both sides |
|
TDT |
Three lip seal at one side, double three lip seal on the other side |
|
FS |
Sealing with one lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBS |
Sealing with three lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBT |
Sealing with three lip seal and a protective metal ring at one side and three lip seal on the other side |
|
2P |
Five lip seal on both sides |
|
2PB |
Five lip seal and metal shield, on both sides |
|
2PC |
Five lip seal on both sides + metal cover |
|
P |
Triple lip seal on one side, cylindrical surface of outer ring |
|
PP |
Triple lip seal, cylindrical surface of outer ring |
|
PB |
Triple lip seal on one side, spherical surface of outer ring |
|
PPB |
Triple lip seal, spherical surface of outer ring |
|
RR |
One lip seal cylindrical surface of outer ring |
|
RRB |
One lip seal spherical surface of outer ring |
|
KPP |
Triple lip seal cylindrical surface of outer ring |
|
KPPB |
Triple lip seal spherical surface of outer ring |
|
KR |
One lip seal on one side, cylindrical surface of outer ring |
|
KRR |
One lip seal, cylindrical surface of outer ring |
|
KRB |
One lip seal on one side, spherical surface |
|
KRRB |
One lip seal, spherical surface |
|
KRP |
One lip seal on one side and on the other side is triple lip seal |
